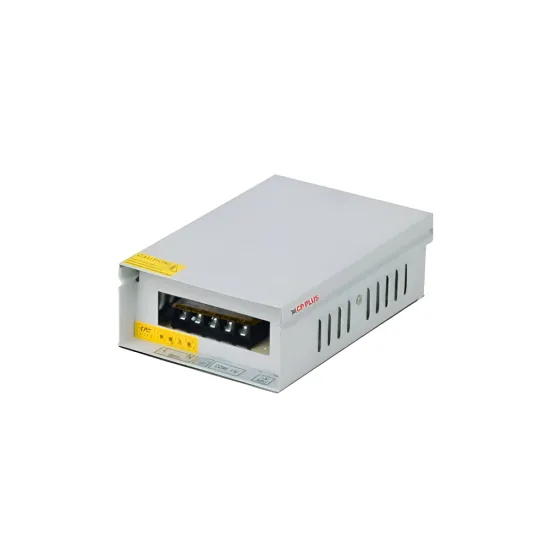

Description
| Input Voltage | 180~264VAC |
| Output Voltage | 12V DC |
| Current Range | 0~20A |
| Rated Power | 240W |
| Ripple & Noise (max.) | 100mVp-p |
| Voltage Adjustment Range | 11.4~13.2V |
| Line Regulation | 1.0% |
| Voltage Tolerance | 2.0% |
| Setup Rise Time | 600ms, 30ms at full load |
| Hold Up Time (Typ.) | 13ms at full load |
| Load Regulation | 5.0% |
| Temperature Coefficient | 0.03%/°C (0~50°C) |
| Frequency Range | 47~63HZ |
| Efficiency (Typ.) | 84% |
| AC Current (Typ.) | 5A/115VAC, 3A/230VAC |
| Inrush Current (Typ.) | 20A/115VAC, 40A/230VAC |
| Leakage Current | <2mA / 240VAC |
| Over Load | 110~200% rated output power, Protection type: Shut down O/P, re-power |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25°C/ 70% RH |
| Working Humidity | 20~90% RH Non-condensing |
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle, 60min.each along X, Y, Z axes |
| Dimension | 196(L) x 114(W) x 55mm(H) |
| Storage Temperature | -20~+85°C, 10~95%RH |
| Working Temperature | -20~+40°C |
| Withstand Voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC |
