Description
| Specification | Details |
|---|---|

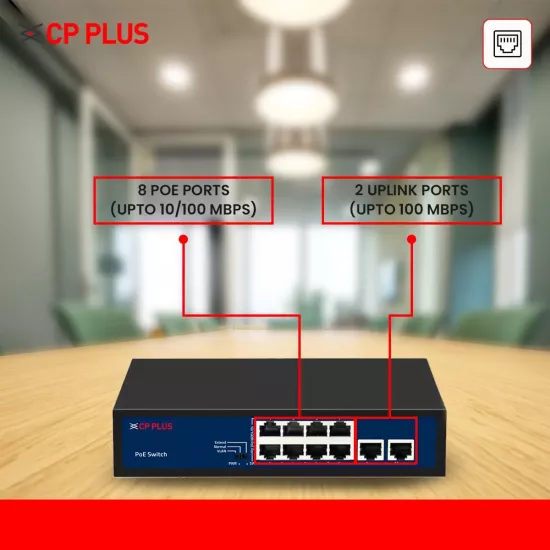

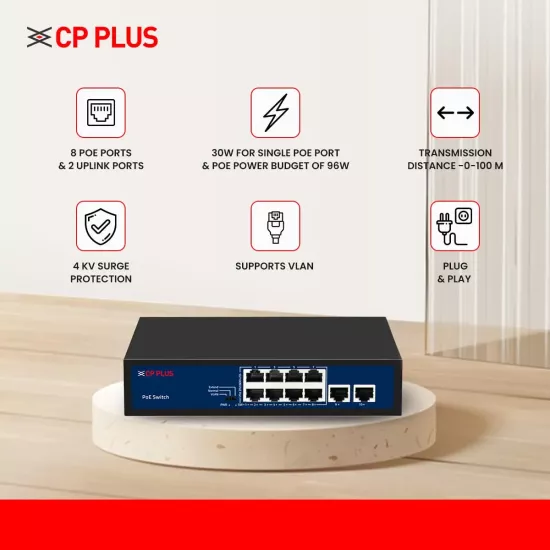

| Network Port | 8, 10/100Mbps; RJ45 ports; Max. 30W Output of Single PoE Port |
| Uplink Ports | 2, 10/100Mbps; Transmission Distance: Default: 0-100m |
| Switch Capacity | 2Gbps (non-blocking) |
| Forwarding Rates | 0.1488 Mbps/port |
| Poe Standard | IEEE802.3/802.3u/802.3x |
| Poe Power Supply | 1/2(+), 3/6(-) |

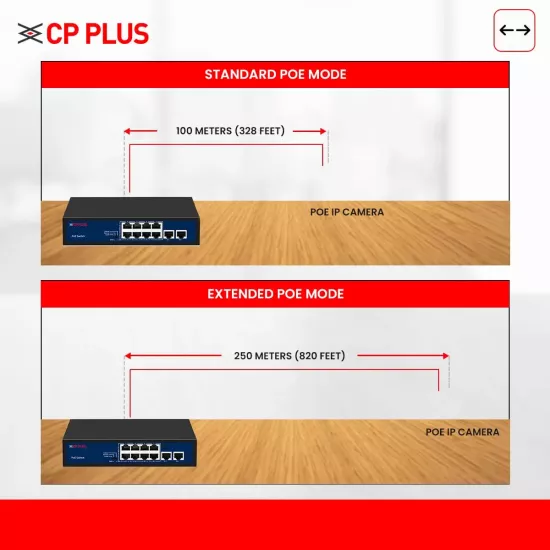

| Transmission Distance | 0-100m/100Mbps or Max. 250m/10Mbps via Cat.5e or more under Extend mode |
| MAC Address List | 2K |
| Lightning Protection | Support |
| Poe Power Budget | 96W |
| ESD Protection | Air discharge: 8KV; Contact discharge: 6KV |
| Power Consumption | <5W |
| LED Light | Light on: Powering; Light off: No Power |
| Power Source | Built-in Power Supply, Input: 100-240V AC, 50/60Hz |

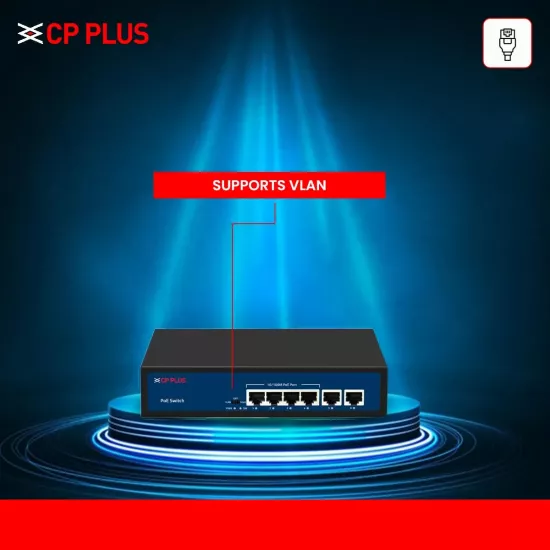

| Power Light | Green light off: Normal/Default mode; Green light on: VLAN mode; Green light flash: Extend mode |
| Working Temperature | -20°C ~50°C |
| Humidity | 10% – 95%, non-condensing |
| Storage Temperature | -45°C ~85°C |
| Dimension | 200mm x 118mm x 44mm |
