Description
| Network Standards | IEEE802.3, IEEE802.3u, IEEE802.3x |
| LED Indicator | 6 * Link/Act LED indicators, 1 * Power LED indicator |
| Interfaces | 4 * 10/100 Base-TX Ethernet Ports (Data/Power) 2 * 10/100 Base-TX Ethernet Port (Data) |
| Transmission Media | Recommended: CAT5/5e UTP or better |
| Fan Quantity | – |
| Dimension | 175 mm x 127 mm x 43 mm (L x W x H) |
| Level of Protection | 4kV |
| Forwarding Mode | Store-and-forward |
| Switch Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| Buffer | – |
| MAC Address Table | 1K |
| Jumbo Frame | – |

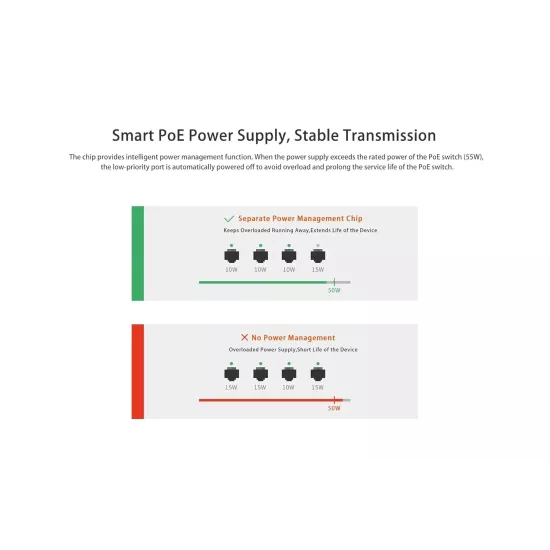

| PoE Budget | Compatible with IEEE802.3af/at Whole device: 55W |
| Power Consumption | – |
| Input Voltage | 190 – 240V AC 50/60Hz |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting: Not support |
| Environment | Operating Temperature: 0°C – 40°C Storage Temperature: -40°C – 70°C Operating Humidity: 10% – 90%, non-condensing Storage Humidity: 5% – 90%, non-condensing |
| Certification | – |
